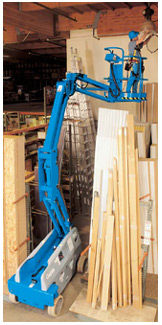

Genie Z-20/8N - Narrow Electric Boom

Platform

Height

20' (6.1m)

Size

31" x 40" (79 x 100 cm)

Capacity

400 lbs (181 kg)

Construction

Aluminum

Machine Dimensions

Overall Stowed Height

6'7" (2 m)

Stowed Length

12'4" (3.76 m)

Wheel Base

5'4" (1.63 m)

Width

32" (81 cm)

Ground Clearance

5" (13 cm)

Weight

10,750 lbs (4,876 kg)

Tire Size/Type

6 x 15 (solid)

Performance

Horizontal Reach

8'8" (2.64 m)

Power Source

Electric

Hydraulic Tank Capacity

8 gal (30 L)

Drive Speed - Elevated

creep

Drive Speed - Stowed

2.6 mph (4.2 kph)

Gradeability

18%
