Snorkel SR4084 - Rough Terrain Scissor

Platform

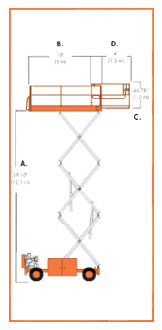

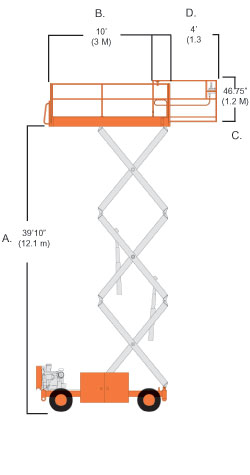

Height

39'10" (12.1m)

Size

6' x 10' (1.8 x 3.0 m)

Guardrail height

43-1/2" (110 cm)

Rollout extension

4' (1.3 m)

Capacity

750 lbs (340 kg)

Capacity on rollout ext

350 lbs (158 kg)

Stowed platform height

8'10-1/4" (2.7 m)

Toeboard height

6" (15 cm)

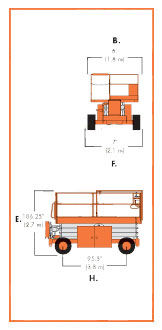

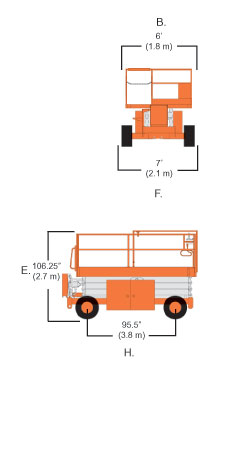

Machine Dimensions

Overall Stowed Height

8'10-1/4" (2.7 m)

Overall Width

7' (2.1 m)

Overall Length

12'6-1/2" (3.8 m)

Wheel Base

7'5-1/2" (2.3 m)

Weight

9,300 lbs (4218 kg)

Ground Clearance

6-3/4" (17.1 cm)

Tire Size/Type

26 x 12 (foam filled)

Performance

Power Source

gasoline or diesel

Gradeability

32%

Drive Speed Elevated

0.4 mph (0.6 kph)

Drive Speed Stowed

2.4 mph (3.9 kph)

Platform lift speed

35 sec minimum

Turning Radius Outside

8'10" (2.7 m)

Turning Radius Inside

16'7" (5.1 m)
