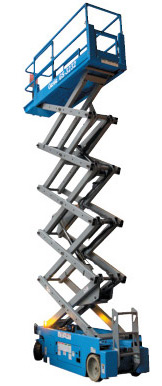

Genie GS 3232 - Narrow Scissor

Platform

Height

32' (9.75 m)

Size

32 x 89" (0.81 x 2.26 m)

Guardrail height

43.3" (1.10)

Rollout extension

3' (.91 m)

Capacity

500 lbs (227 kg)

Capacity on rollout ext

250 lbs (113 kg)

Stowed platform height

50.75" (1.29 m)

Machine Dimensions

Overall Stowed Height

6'8" (2.03 m)

Overall Width

32" (0.81 m)

Overall Length

8' (2.43 m)

Wheel Base

6'1" (1.85 m)

Weight

5,185 lbs (2,532 kg)

Ground Clearance

3.5" (8.9 cm)

Gradeability

25%

Tire Size/Type

5 x 15 (solid rubber)

Performance

Drive Speed Elevated

0.5 mph (0.8 kph)

Drive Speed Stowed

2.2 mph (3.5 kph)

Platform lift speed

57 sec minimum

Platform lower speed

40 sec. minimum

Turning Radius Outside

7' (2.13 m)

Turning Radius Inside

0
