Snorkel S2033 - Narrow Slab Scissor

Platform

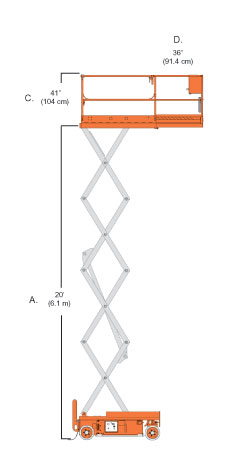

Height

20' (6.1m)

Size

30" x 90" (76 x 229 cm)

Guardrail height

41" (104 cm)

Rollout extension

36" (91.4 cm)

Capacity

800 lbs (227 kg)

Capacity on rollout ext

250 lbs (113 kg)

Stowed platform height

37.5" (95 cm)

Toeboard height

6" (15 cm)

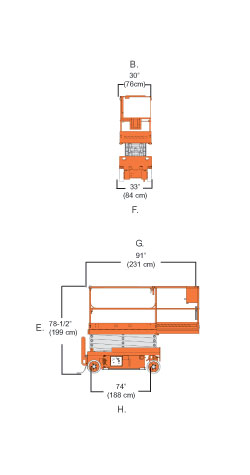

Machine Dimensions

Overall Stowed Height

78.5" (199 cm)

Overall Width

33" (84 cm)

Overall Length

91" (231 cm)

Wheel Base

74" (188 cm)

Weight

3,750 lbs (1701 kg)

Ground Clearance - platform stowed, Porthole Protector raised

3-1/4" (8.3 cm)

Ground Clearance - platform lowered, Porthole Protector lowered

3/4" (1.9 cm)

Tire Size/Type

4 x 16 (solid rubber)

Performance

Drive Speed Elevated

0.4 mph (0.6 kph)

Drive Speed Stowed

2.0 mph (3.2 kph)

Platform lift speed

20 sec minimum

Turning Radius Outside

101" (257 cm)

Turning Radius Inside

30" (76 cm)
