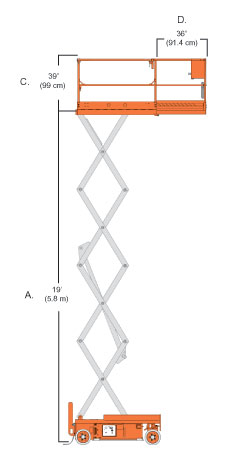

Snorkel S1930 - Narrow Slab Scissor
Platform |
Height |
19' (5.8m) |
Size |
29" x 64" (74 x 163 cm) |
Guardrail height |
39" (99 cm) |
Rollout extension |
36" (91.4 cm) |
Capacity |
500 lbs (227 kg) |
Capacity on rollout ext |
250 lbs (113 kg) |
Stowed platform height |
40" (101.6 cm) |
Toeboard height |
6" (15 cm) |
|

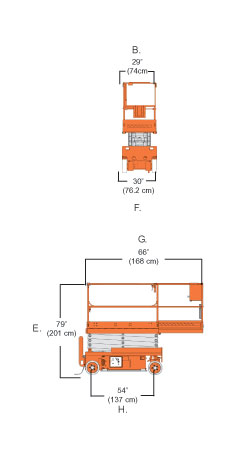

Machine Dimensions |
Overall Stowed Height |
79" (201 cm) |
Overall Width |
30" (76.2 cm) |
Overall Length |
66" (168 cm) |
Overall Length With Step |
74" (188 cm) |
Wheel Base |
54" (137 cm) |
Weight |
2,950 lbs (1336 kg) |
Ground Clearance - platform stowed, Porthole Protector raised |
2-1/2" (7 cm) |
Ground Clearance - platform lowered, Porthole Protector lowered |
3/4" (1.9 cm) |
Gradeability |
20% |
Tire Size/Type |
4 x 12 (solid rubber) |
|
Performance |
Drive Speed Elevated |
0.4 mph (0.6 kph) |
Drive Speed Stowed |
2.0 mph (3.2 kph) |
Platform lift speed |
12 sec minimum |
Platform lower speed |
24 sec. minimum |
Turning Radius Outside |
64-1/2" (164 cm) |
Turning Radius Inside |
5" (12.7 cm) |
|
|
JLG 1930ES - Narrow Slab Scissor
Platform |
Height |
18'9" (5.72m) |
Size |
30" x 73.5" (76 x 170 cm) |
Guardrail height |
43.3" (110 cm) |
Rollout extension |
35.5" (90 cm) |
Capacity |
500 lbs (227 kg) |
Capacity on rollout ext |
250 lbs (113 kg) |
Stowed platform height |
40" (101.6 cm) |
Toeboard height |
6" (15 cm) |
|
Machine Dimensions |
Overall Stowed Height |
77" (198 cm) |
Overall Width |
30" (76 cm) |
Overall Length |
73.5" (187 cm) |
Wheel Base |
63" (160 cm) |
Weight |
2,750 lbs (1247 kg) |
Ground Clearance - platform stowed |
3.5" (8.8 cm) |
Gradeability |
25% |
Tire Size/Type |
4 x 12.5" (solid rubber) |
|
Performance |
Drive Speed Elevated |
0.5 mph (0.8 kph) |
Drive Speed Lowered |
3.0 mph (4.82 kph) |
Platform lift speed |
22 sec minimum |
Platform lower speed |
28 sec. minimum |
Turning Radius Outside |
69" (175 cm) |
Turning Radius Inside |
0" (0 cm) |
|
|
|
|
