Rated Capacity |
6,000 lb (2,722 kg) |
Maximum Lift Height |
44 ft (13.41 m) |

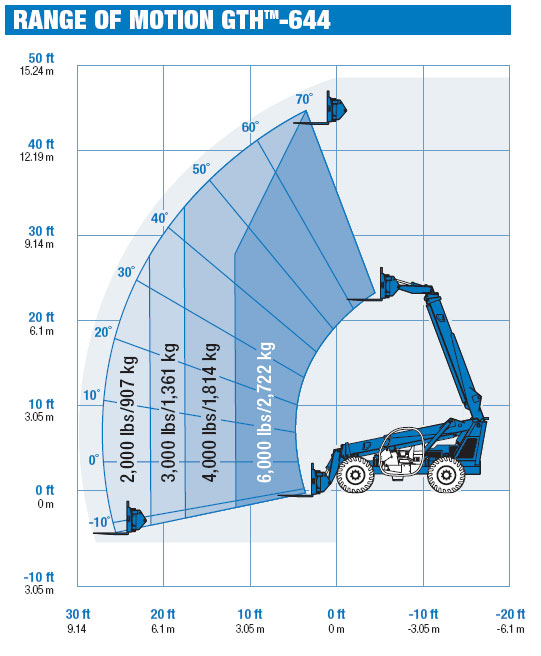

Maximum Reach |
27 ft (8.23 m) |
Capacity @ Maximum Reach |
2,000 lb (907 kg) |
|
Machine Specifications |
Operating Weight |
21,480 lb (9,743 kg) |
Stowed Length |
19'10" (6.05 m) |
Stowed Width |
8'6" (2.59 m) |
Wheelbase |
10'10" (3.30 m) |
Outside Turning Radius |
14'9" (4.50 m) |
Ground Clearance |
17" (0.43 m) |
Drive |
4 x 4 |
Steering |
All-Wheel |
Tires |
13 x 24 - 12 ply |
Maximum Travel Speed |
17 mph (27.4 kmph) |
Frame Tilt Left/Right Frame Leveling |
±10 Degrees |
|
|
|
