Snorkel TB 60 - 4WD Straight Boom
Platform |
Height |
60' (18.3m) |
Size |
60" x 30" (152 x 76 cm) |
Capacity |
500 lbs (227 kg) |
Construction |
Steel |
|

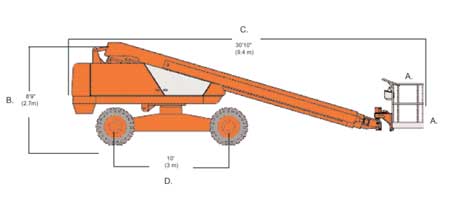

Machine Dimensions |
Overall Stowed Height |
8'9" (2.7m) |
Stowed Length |
30'10" (9.4 m) |
Wheel Base |
10' (3.1 m) |
Width |
8'2" (2.5 m) |
Weight |
20,700 lbs (9389 kg) |
Tire Size/Type |
15 x 19.5 (foam filled) |
|
Performance |

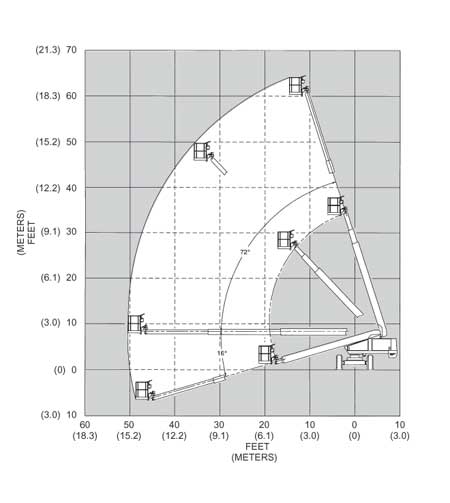

Horizontal Reach |
50' (15.2 m) |
Power Source |
Gas or Propane |
Fuel Capacity |
40 gal (151.4 L) |
Hydraulic Tank Capacity |
35 gal (132.5 L) |
Drive Speed - Elevated |
creep |
Drive Speed - Stowed |
3 mph (4.8 kph) |
Gradeability |
25% |
|
|
|
|
