Snorkel ATB 50 - Knuckle Boom
Platform |
Height |
50' (15.2m) |
Size |
72" x 30" (183 x 76 cm) |
Capacity |
500 lbs (227 kg) |
Construction |
Aluminium |
|

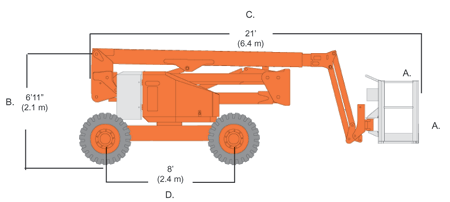

Machine Dimensions |
Overall Stowed Height |
6'11" (2.1m) |
Stowed Length |
21' (6.4 m) |
Wheel Base |
8' (2.4 m) |
Width |
7'6" (2.3 m) |
Weight |
14,980 lbs (6795 kg) |
Tire Size/Type |
12 x 16.5 (pneumatic) |
|
Performance |
Horizontal Reach |
28' (8.5 m) |
Power Source |
gas or propane |
Fuel Capacity |
15 gal (56.7 L) |
Hydraulic Tank Capacity |
16.5 gal (62.4 L) |
Drive Speed - Elevated |
creep |
Drive Speed - Stowed |
3.5 mph (5.6 kph) |
Gradeability |
25% |
|
|
|
|
