Snorkel TB42 - Straight Boom
Platform |
Height |
42' (12.8m) |
Size |
30" x 60" (76 x 152 cm) |
Capacity |
500 lbs (272 kg) |
Construction |
Steel |
|

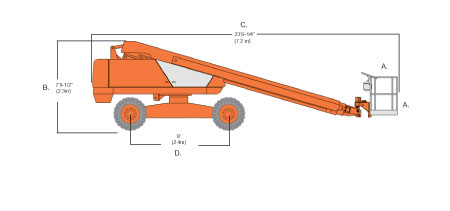

Machine Dimensions |
Overall Stowed Height |
7'10" (2.3m) |
Stowed Length |
23'7" (7.2 m) |
Wheel Base |
8' (2.4 m) |
Width |
7'11-1/2" (2.4 m) |
Ground Clearance |
10" (25 cm) |
Weight |
10,500 lbs (4763 kg) |
Tire Size/Type |
12 x 16.5 (pneumatic) |
|
Performance |
Horizontal Reach |
33' (10.1 m) |
Power Source |
gas or diesel |
Fuel Capacity |
20 gal (75.7 L) |
Hydraulic Tank Capacity |
20 gal (75.7 L) |
Drive Speed - Elevated |
creep |
Drive Speed - Stowed |
3 mph (4.8 kph) |
Gradeability |
25% |
|
|
|
|
