Snorkel UNO 41 - Knuckle Boom

Platform

Height

40'10" (12.4m)

Size

30" x 60" (76 x 152 cm)

Capacity

500 lbs (227 kg)

Construction

Aluminum

Machine Dimensions

Overall Stowed Height

7'4" (2.3m)

Stowed Length

16'3" (5 m)

Wheel Base

6'6" (1.8 m)

Width

7'2" (2.2 m)

Weight

11,200 lbs (5080 kg)

Tire Size/Type

12 x 16.5 (pneumatic)

Performance

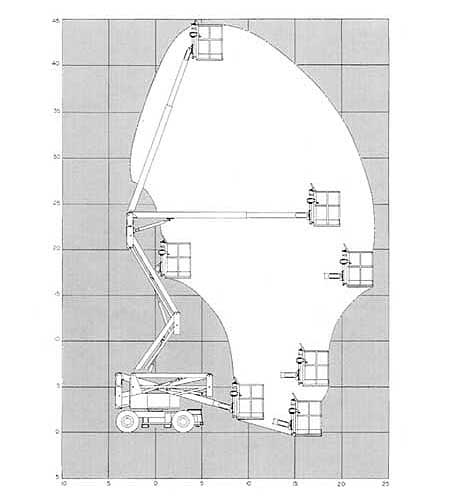

Horizontal Reach

23'7" (7.2 m)

Power Source

gas or diesel

Fuel Capacity

20 gal (75.7 L)

Hydraulic Tank Capacity

20 gal (75.7 L)

Drive Speed - Elevated

1.3 mph (2.1 kph)

Drive Speed - Stowed

4.5 mph (7.2 kph)

Gradeability

30%
