Snorkel TB37 - Straight Boom

Platform

Height

37' (11.3m)

Size

30" x 60" (76 x 152 cm)

Capacity

600 lbs (272 kg)

Construction

Steel

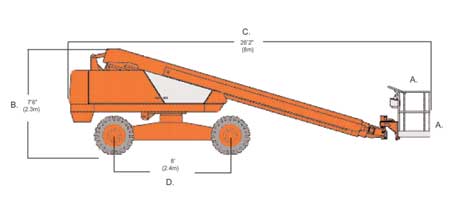

Machine Dimensions

Overall Stowed Height

7'6" (2.3m)

Stowed Length

26'2" (8 m)

Wheel Base

8' (2.4 m)

Width

7'11-1/2" (2.4 m)

Ground Clearance

10" (25 cm)

Weight

10,500 lbs (4763 kg)

Tire Size/Type

12 x 16.5 (pneumatic)

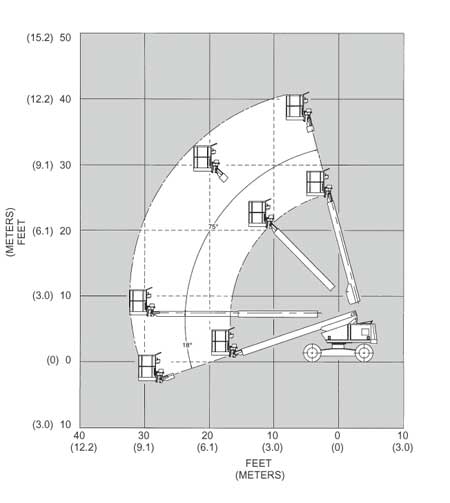

Performance

Horizontal Reach

32' (9.8 m)

Power Source

gas or diesel

Fuel Capacity

20 gal (75.7 L)

Hydraulic Tank Capacity

20 gal (75.7 L)

Drive Speed - Elevated

creep

Drive Speed - Stowed

3 mph (4.8 kph)

Gradeability

25%
