JLG 1350SJP - 4WD Straight/Jib Boom
Platform |
Height |
135' (41.15 m) |
Size |
36 x 96 in. (0.91 x 2.44 m) |
Capacity |
1000 lbs (454 kg) restricted
500 lbs (227 kg) unrestricted |
Construction |
Steel |
|
Machine Dimensions |
Overall Stowed Height |
10' (3.05 m) |
Stowed Length |
38'11" (11.86 m) |
Wheel Base |
12'6" (3.81 m) |
Width |
8'2" (2.49 m) - Axles In
12'6" (3.8 m) - Axles Out |
Weight |
45,000 lb (20,411 kg) |
Tire Size/Type |
445/50D710 Foam Filled |
|
Performance |

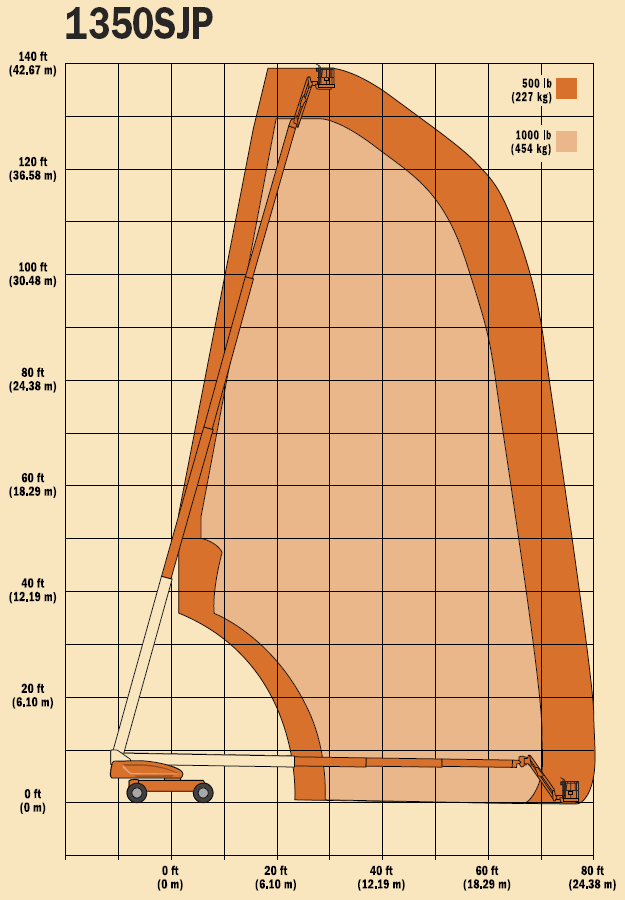

Horizontal Reach |
80 ft (24.38 m) |
Power Source |
Diesel |
Fuel Capacity |
31 gal. (117.35 L) |
Hydraulic Tank Capacity |
55 gal. (208.2 L) |
Drive Speed - Elevated |
creep |
Drive Speed - Stowed |
3.25 mph (5.2 kmph) |
Gradeability |
45% |
Also Includes:
- SkyPower - 7500W Generator Power to Platform
- SkyWelder - 60Hz/250Amp Miller Welder in Platform
- SkyAir - 1/2" Air Line to Platform
